Vertical Plastic Dewatering Machine
Function:
The RAYFON EST Vertical Plastic Dewatering Machine is designed to efficiently remove surface moisture from clean plastic flakes after washing. Through high-speed centrifugal force, it rapidly separates water from materials like PET, PE, and PP, significantly reducing moisture content to prepare flakes for drying and further processing.
Key Features:
1.Vertical design saves floor space and enables seamless integration into production lines.
2.High-speed centrifugal rotation ensures thorough water removal in short cycles.
3.Robust stainless steel construction resists corrosion and wear.
4.Low energy consumption with automatic operation and minimal maintenance.
5.Adjustable operation time and speed for different materials and moisture requirements.
Equipment Specification:
| ITEM |
UNIT |
RTSW-5012D |
RTSW-6012D |
RTSW-8015D |
| Rotor diameter |
mm |
500 |
600 |
800 |
| Rotor width |
mm |
1200 |
1200 |
1500 |
| Motor power |
kW/HP |
22/30 |
30/40 |
55/75 |
| Machine Length |
mm |
2230 |
2530 |
2750 |
| Machine Width |
mm |
1630 |
1990 |
2230 |
| Machine Height |
mm |
3450 |
3600 |
3700 |
| Dehydrating Rate |
% |
98.5% |
98.5% |
98.5% |
| Process Capacity |
KG/H |
≤1000 |
≤3000 |
≤5000 |

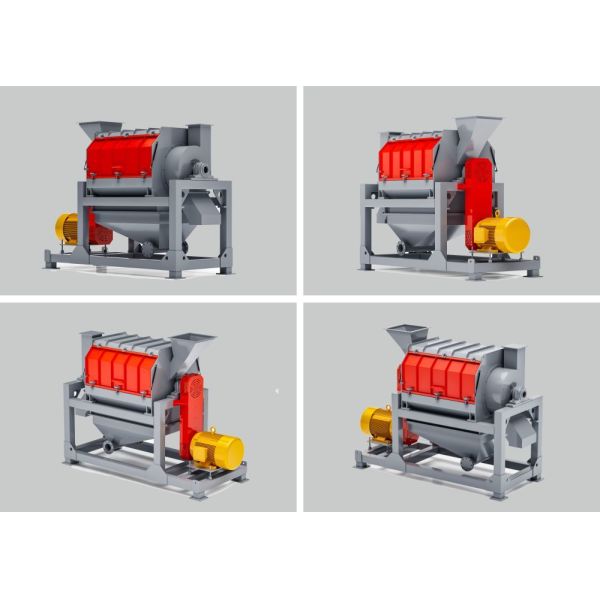

Physical Pictures:
Applications:
All kind of PET bottle flakes, PE/PP films, and rigid plastic fragments.
Essential equipment in plastic recycling plants for post-washing processing.
Used in pelletizing lines to reduce drying energy consumption and improve efficiency.
Suitable for handling plastic flakes from household, industrial, and agricultural waste sources.
